Interface of the network transport layer. More...

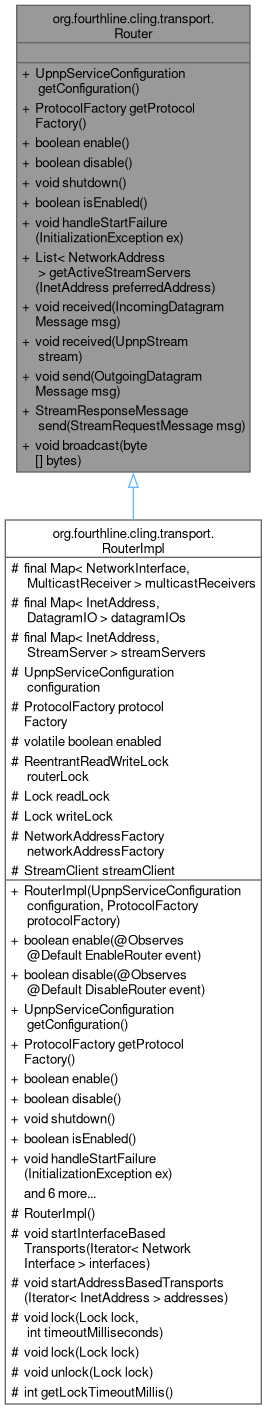

Inheritance diagram for org.fourthline.cling.transport.Router:

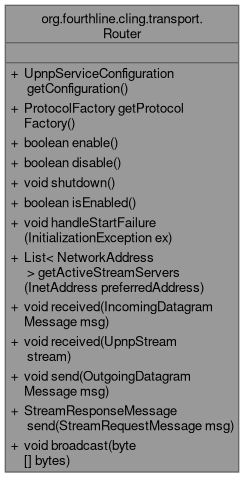

Collaboration diagram for org.fourthline.cling.transport.Router:

Public Member Functions
UpnpServiceConfiguration	getConfiguration ()

ProtocolFactory	getProtocolFactory ()

boolean	enable () throws RouterException
	Starts all sockets and listening threads for datagrams and streams.

boolean	disable () throws RouterException
	Unbinds all sockets and stops all listening threads for datagrams and streams.

void	shutdown () throws RouterException
	Disables the router and releases all other resources.

boolean	isEnabled () throws RouterException

void	handleStartFailure (InitializationException ex) throws InitializationException
	Called by the `enable()` method before it returns.

List< NetworkAddress >	getActiveStreamServers (InetAddress preferredAddress) throws RouterException

void	received (IncomingDatagramMessage msg)

void	received (UpnpStream stream)

void	send (OutgoingDatagramMessage msg) throws RouterException

StreamResponseMessage	send (StreamRequestMessage msg) throws RouterException

void	broadcast (byte[] bytes) throws RouterException

Detailed Description

Interface of the network transport layer.

Encapsulates the transport layer and provides methods to the upper layers for sending UPnP stream (HTTP) org.fourthline.cling.model.message.StreamRequestMessages, sending (UDP) datagram org.fourthline.cling.model.message.OutgoingDatagramMessages, as well as broadcasting bytes to all LAN participants.

A router also maintains listening sockets and services, for incoming UDP unicast/multicast org.fourthline.cling.model.message.IncomingDatagramMessage and TCP org.fourthline.cling.transport.spi.UpnpStreams. An implementation of this interface handles these messages, e.g. by selecting and executing the right protocol.

An implementation must be thread-safe, and can be accessed concurrently. If the Router is disabled, it doesn't listen on the network for incoming messages and does not send outgoing messages.

See also: org.fourthline.cling.protocol.ProtocolFactory

Author: Christian Bauer

Member Function Documentation

◆ broadcast()

void org.fourthline.cling.transport.Router.broadcast ( byte[] bytes ) throws RouterException

Call this method to broadcast a UDP message to all hosts on the network.

Parameters

bytes The byte payload of the UDP datagram.

Exceptions

RouterException if a recoverable error, such as thread interruption, occurs.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ disable()

boolean org.fourthline.cling.transport.Router.disable ( ) throws RouterException

Unbinds all sockets and stops all listening threads for datagrams and streams.

Returns: true if the router was disabled. false if it wasn't running.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ enable()

boolean org.fourthline.cling.transport.Router.enable ( ) throws RouterException

Starts all sockets and listening threads for datagrams and streams.

Returns: true if the router was enabled. false if it's already running.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ getActiveStreamServers()

List< NetworkAddress > org.fourthline.cling.transport.Router.getActiveStreamServers ( InetAddress preferredAddress ) throws RouterException

Parameters

preferredAddress A preferred stream server bound address or null.

Returns: An empty list if no stream server is currently active, otherwise a single network address if the preferred address is active, or a list of all active bound stream servers.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ getConfiguration()

UpnpServiceConfiguration org.fourthline.cling.transport.Router.getConfiguration ( )

Returns: The configuration used by this router.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ getProtocolFactory()

ProtocolFactory org.fourthline.cling.transport.Router.getProtocolFactory ( )

Returns: The protocol factory used by this router.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ handleStartFailure()

void org.fourthline.cling.transport.Router.handleStartFailure ( InitializationException ex ) throws InitializationException

Called by the enable() method before it returns.

Parameters

ex	The cause of the failure.

Exceptions

InitializationException if the exception was not recoverable.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ isEnabled()

boolean org.fourthline.cling.transport.Router.isEnabled ( ) throws RouterException

Returns: true if the router is currently enabled.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ received() [1/2]

void org.fourthline.cling.transport.Router.received ( IncomingDatagramMessage msg )

This method is called internally by the transport layer when a datagram, either unicast or multicast, has been received. An implementation of this interface has to handle the received message, e.g. selecting and executing a UPnP protocol. This method should not block until the execution completes, the calling thread should be free to handle the next reception as soon as possible.

Parameters

msg	The received datagram message.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ received() [2/2]

void org.fourthline.cling.transport.Router.received ( UpnpStream stream )

This method is called internally by the transport layer when a TCP stream connection has been made and a response has to be returned to the sender. An implementation of this interface has to handle the received stream connection and return a response, e.g. selecting and executing a UPnP protocol. This method should not block until the execution completes, the calling thread should be free to process the next reception as soon as possible. Typically this means starting a new thread of execution in this method.

Parameters

stream

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ send() [1/2]

void org.fourthline.cling.transport.Router.send ( OutgoingDatagramMessage msg ) throws RouterException

Call this method to send a UDP datagram message.

Parameters

msg	The UDP datagram message to send.

Exceptions

RouterException if a recoverable error, such as thread interruption, occurs.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ send() [2/2]

StreamResponseMessage org.fourthline.cling.transport.Router.send ( StreamRequestMessage msg ) throws RouterException

Call this method to send a TCP (HTTP) stream message.

Parameters

msg	The TCP (HTTP) stream message to send.

Returns: The response received from the server.

Exceptions

RouterException if a recoverable error, such as thread interruption, occurs.

Implemented in org.fourthline.cling.transport.RouterImpl.

◆ shutdown()

void org.fourthline.cling.transport.Router.shutdown ( ) throws RouterException

Disables the router and releases all other resources.

Implemented in org.fourthline.cling.transport.RouterImpl.

The documentation for this interface was generated from the following file:

/github/workspace/yaacc/src/main/java/org/fourthline/cling/transport/Router.java
