Default implementation of network message router. More...

Inheritance diagram for org.fourthline.cling.transport.RouterImpl:

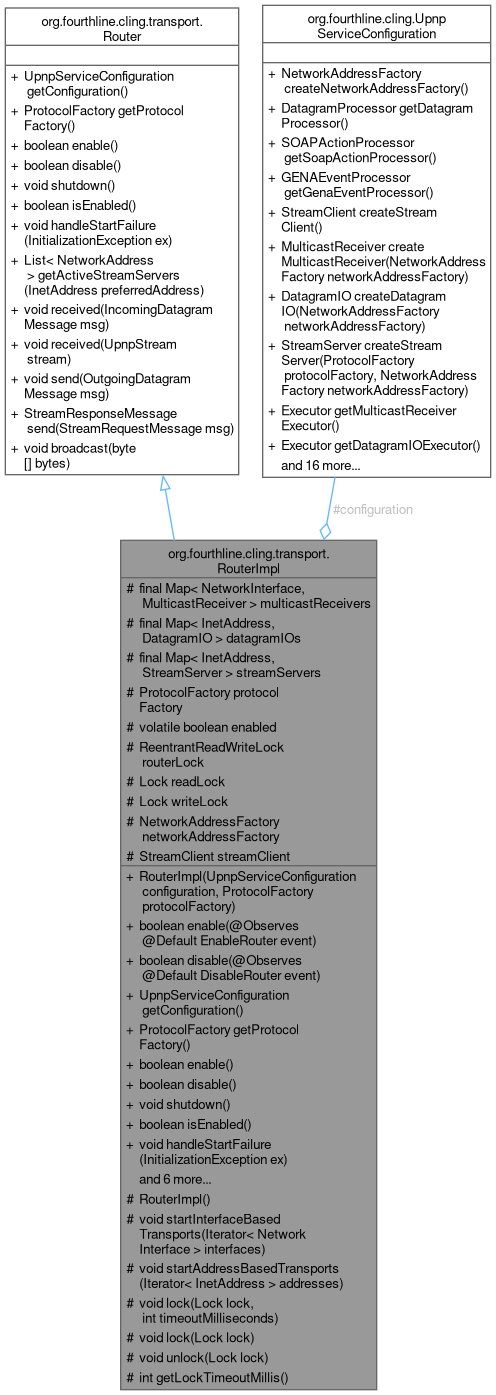

Collaboration diagram for org.fourthline.cling.transport.RouterImpl:

Public Member Functions
	RouterImpl (UpnpServiceConfiguration configuration, ProtocolFactory protocolFactory)

boolean	enable (@Observes @Default EnableRouter event) throws RouterException

boolean	disable (@Observes @Default DisableRouter event) throws RouterException

UpnpServiceConfiguration	getConfiguration ()

ProtocolFactory	getProtocolFactory ()

boolean	enable () throws RouterException
	Initializes listening services: First an instance of `org.fourthline.cling.transport.spi.MulticastReceiver` is bound to each network interface.

boolean	disable () throws RouterException
	Unbinds all sockets and stops all listening threads for datagrams and streams.

void	shutdown () throws RouterException
	Disables the router and releases all other resources.

boolean	isEnabled ()

void	handleStartFailure (InitializationException ex) throws InitializationException
	Called by the `enable()` method before it returns.

List< NetworkAddress >	getActiveStreamServers (InetAddress preferredAddress) throws RouterException

void	received (IncomingDatagramMessage msg)
	Obtains the asynchronous protocol `Executor` and runs the protocol created by the `org.fourthline.cling.protocol.ProtocolFactory` for the given message.

void	received (UpnpStream stream)
	Obtains the synchronous protocol `Executor` and runs the `org.fourthline.cling.transport.spi.UpnpStream` directly.

void	send (OutgoingDatagramMessage msg) throws RouterException
	Sends the UDP datagram on all bound `org.fourthline.cling.transport.spi.DatagramIO`s.

StreamResponseMessage	send (StreamRequestMessage msg) throws RouterException
	Sends the TCP stream request with the `org.fourthline.cling.transport.spi.StreamClient`.

void	broadcast (byte[] bytes) throws RouterException
	Sends the given bytes as a broadcast on all bound `org.fourthline.cling.transport.spi.DatagramIO`s, using source port 9.

Protected Member Functions
void	startInterfaceBasedTransports (Iterator< NetworkInterface > interfaces) throws InitializationException

void	startAddressBasedTransports (Iterator< InetAddress > addresses) throws InitializationException

void	lock (Lock lock, int timeoutMilliseconds) throws RouterException

void	lock (Lock lock) throws RouterException

void	unlock (Lock lock)

int	getLockTimeoutMillis ()

Protected Attributes
final Map< NetworkInterface, MulticastReceiver >	multicastReceivers = new HashMap<>()

final Map< InetAddress, DatagramIO >	datagramIOs = new HashMap<>()

final Map< InetAddress, StreamServer >	streamServers = new HashMap<>()

UpnpServiceConfiguration	configuration

ProtocolFactory	protocolFactory

volatile boolean	enabled

ReentrantReadWriteLock	routerLock = new ReentrantReadWriteLock(true)

Lock	readLock = routerLock.readLock()

Lock	writeLock = routerLock.writeLock()

NetworkAddressFactory	networkAddressFactory

StreamClient	streamClient

Detailed Description

Default implementation of network message router.

Initializes and starts listening for data on the network when enabled.

Author: Christian Bauer

Constructor & Destructor Documentation

◆ RouterImpl()

org.fourthline.cling.transport.RouterImpl.RouterImpl	(	UpnpServiceConfiguration	configuration,
		ProtocolFactory	protocolFactory
	)

Parameters

configuration	The configuration used by this router.
protocolFactory	The protocol factory used by this router.

Member Function Documentation

◆ broadcast()

void org.fourthline.cling.transport.RouterImpl.broadcast ( byte[] bytes ) throws RouterException

Sends the given bytes as a broadcast on all bound org.fourthline.cling.transport.spi.DatagramIOs, using source port 9.

TODO: Support source port parameter

Parameters

bytes The byte payload of the UDP datagram.

Implements org.fourthline.cling.transport.Router.

Referenced by org.fourthline.cling.transport.RouterImpl.broadcast().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ disable()

boolean org.fourthline.cling.transport.RouterImpl.disable ( ) throws RouterException

Unbinds all sockets and stops all listening threads for datagrams and streams.

Returns: true if the router was disabled. false if it wasn't running.

Implements org.fourthline.cling.transport.Router.

Referenced by org.fourthline.cling.transport.RouterImpl.shutdown().

Here is the caller graph for this function:

◆ enable()

boolean org.fourthline.cling.transport.RouterImpl.enable ( ) throws RouterException

Initializes listening services: First an instance of org.fourthline.cling.transport.spi.MulticastReceiver is bound to each network interface.

Then an instance of org.fourthline.cling.transport.spi.DatagramIO and org.fourthline.cling.transport.spi.StreamServer is bound to each bind address returned by the network address factory, respectively. There is only one instance of org.fourthline.cling.transport.spi.StreamClient created and managed by this router.

Implements org.fourthline.cling.transport.Router.

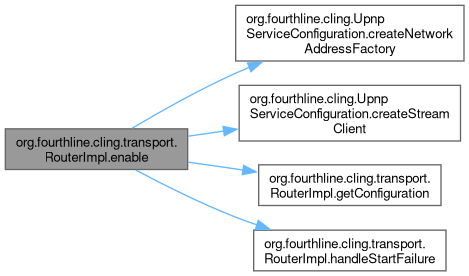

Here is the call graph for this function:

◆ getActiveStreamServers()

List< NetworkAddress > org.fourthline.cling.transport.RouterImpl.getActiveStreamServers ( InetAddress preferredAddress ) throws RouterException

Parameters

preferredAddress A preferred stream server bound address or null.

Returns: An empty list if no stream server is currently active, otherwise a single network address if the preferred address is active, or a list of all active bound stream servers.

Implements org.fourthline.cling.transport.Router.

◆ getConfiguration()

UpnpServiceConfiguration org.fourthline.cling.transport.RouterImpl.getConfiguration ( )

Returns: The configuration used by this router.

Implements org.fourthline.cling.transport.Router.

Referenced by org.fourthline.cling.transport.RouterImpl.enable(), org.fourthline.cling.transport.RouterImpl.received(), and org.fourthline.cling.transport.RouterImpl.received().

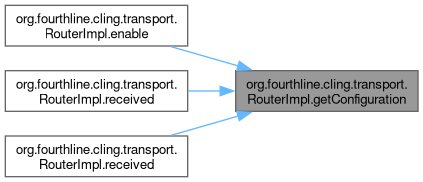

Here is the caller graph for this function:

◆ getLockTimeoutMillis()

int org.fourthline.cling.transport.RouterImpl.getLockTimeoutMillis ( )

protected

Returns: Defaults to 6 seconds, should be longer than it takes the router to be enabled/disabled.

◆ getProtocolFactory()

ProtocolFactory org.fourthline.cling.transport.RouterImpl.getProtocolFactory ( )

Returns: The protocol factory used by this router.

Implements org.fourthline.cling.transport.Router.

Referenced by org.fourthline.cling.transport.RouterImpl.received().

Here is the caller graph for this function:

◆ handleStartFailure()

void org.fourthline.cling.transport.RouterImpl.handleStartFailure ( InitializationException ex ) throws InitializationException

Called by the enable() method before it returns.

Parameters

ex	The cause of the failure.

Exceptions

InitializationException if the exception was not recoverable.

Implements org.fourthline.cling.transport.Router.

Referenced by org.fourthline.cling.transport.RouterImpl.enable().

Here is the caller graph for this function:

◆ isEnabled()

boolean org.fourthline.cling.transport.RouterImpl.isEnabled ( )

Returns: true if the router is currently enabled.

Implements org.fourthline.cling.transport.Router.

◆ received() [1/2]

void org.fourthline.cling.transport.RouterImpl.received ( IncomingDatagramMessage msg )

Obtains the asynchronous protocol Executor and runs the protocol created by the org.fourthline.cling.protocol.ProtocolFactory for the given message.

If the factory doesn't create a protocol, the message is dropped immediately without creating another thread or consuming further resources. This means we can filter the datagrams in the protocol factory and e.g. completely disable discovery or only allow notification message from some known services we'd like to work with.

Parameters

msg	The received datagram message.

Implements org.fourthline.cling.transport.Router.

Here is the call graph for this function:

◆ received() [2/2]

void org.fourthline.cling.transport.RouterImpl.received ( UpnpStream stream )

Obtains the synchronous protocol Executor and runs the org.fourthline.cling.transport.spi.UpnpStream directly.

Parameters

stream The received org.fourthline.cling.transport.spi.UpnpStream.

Implements org.fourthline.cling.transport.Router.

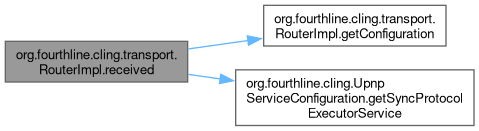

Here is the call graph for this function:

◆ send() [1/2]

void org.fourthline.cling.transport.RouterImpl.send ( OutgoingDatagramMessage msg ) throws RouterException

Sends the UDP datagram on all bound org.fourthline.cling.transport.spi.DatagramIOs.

Parameters

msg	The UDP datagram message to send.

Implements org.fourthline.cling.transport.Router.

◆ send() [2/2]

StreamResponseMessage org.fourthline.cling.transport.RouterImpl.send ( StreamRequestMessage msg ) throws RouterException

Sends the TCP stream request with the org.fourthline.cling.transport.spi.StreamClient.

Parameters

msg	The TCP (HTTP) stream message to send.

Returns: The return value of the org.fourthline.cling.transport.spi.StreamClient#sendRequest(StreamRequestMessage) method or null if no StreamClient is available.

Implements org.fourthline.cling.transport.Router.

◆ shutdown()

void org.fourthline.cling.transport.RouterImpl.shutdown ( ) throws RouterException

Disables the router and releases all other resources.

Implements org.fourthline.cling.transport.Router.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

/github/workspace/yaacc/src/main/java/org/fourthline/cling/transport/RouterImpl.java
