org.fourthline.cling.model.Namespace Class Reference

Enforces path conventions for all locally offered resources (descriptors, icons, etc.) More...

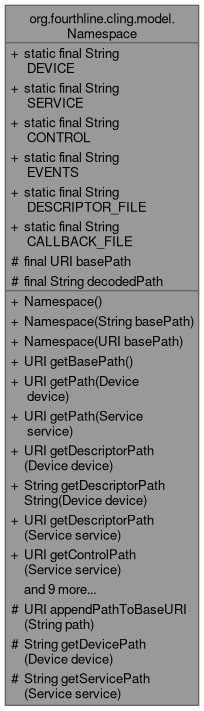

Collaboration diagram for org.fourthline.cling.model.Namespace:

Public Member Functions
	Namespace (String basePath)
	Namespace (URI basePath)
URI	getBasePath ()
URI	getPath (Device device)
URI	getPath (Service service)
URI	getDescriptorPath (Device device)
String	getDescriptorPathString (Device device)
	Performance optimization, avoids URI manipulation.
URI	getDescriptorPath (Service service)
URI	getControlPath (Service service)
URI	getIconPath (Icon icon)
URI	getEventSubscriptionPath (Service service)
URI	getEventCallbackPath (Service service)
String	getEventCallbackPathString (Service service)
	Performance optimization, avoids URI manipulation.
URI	prefixIfRelative (Device device, URI uri)
boolean	isControlPath (URI uri)
boolean	isEventSubscriptionPath (URI uri)
boolean	isEventCallbackPath (URI uri)
Resource[]	getResources (Device device) throws ValidationException

Static Public Attributes
static final String	DEVICE = "/dev"
static final String	SERVICE = "/svc"
static final String	CONTROL = "/action"
static final String	EVENTS = "/event"
static final String	DESCRIPTOR_FILE = "/desc"
static final String	CALLBACK_FILE = "/cb"

Protected Member Functions
URI	appendPathToBaseURI (String path)
String	getDevicePath (Device device)
String	getServicePath (Service service)

Protected Attributes
final URI	basePath
final String	decodedPath

Detailed Description

Enforces path conventions for all locally offered resources (descriptors, icons, etc.)

Every descriptor, icon, event callback, or action message is send to a URL. This namespace defines how the path of this URL will look like and it will build the path for a given resource.

By default, the namespace is organized as follows:

http://host:port/dev/<udn>/desc.xml

http://host:port/dev/<udn>/svc/<svcIdNamespace>/<svcId>/desc.xml

http://host:port/dev/<udn>/svc/<svcIdNamespace>/<svcId>/action

http://host:port/dev/<udn>/svc/<svcIdNamespace>/<svcId>/event

http://host:port/dev/<ThisIsEitherRootUDN>/svc/<svcIdNamespace>/<svcId>/event/cb.xml

http://host:port/dev/<OrEvenAnEmbeddedDevicesUDN>/svc/<svcIdNamespace>/<svcId>/action

...

<p<blockquote>‍

The namespace is also used to discover and create all org.fourthline.cling.model.resource.Resources given a org.fourthline.cling.model.meta.Device's metadata. This procedure is typically invoked once, when the device is added to the org.fourthline.cling.registry.Registry.

Author

Christian Bauer

---

The documentation for this class was generated from the following file:

• /github/workspace/yaacc/src/main/java/org/fourthline/cling/model/Namespace.java
