A Player for playing on a remote avtransport device. More...

Inheritance diagram for de.yaacc.player.AVTransportPlayer:

Collaboration diagram for de.yaacc.player.AVTransportPlayer:

Public Member Functions
	AVTransportPlayer (UpnpClient upnpClient, Device<?, ?, ?> receiverDevice, String name, String shortName, String contentType)

	AVTransportPlayer (UpnpClient upnpClient)

void	onServiceConnected (ComponentName className, IBinder binder)

String	getDeviceId ()

String	getContentType ()

PendingIntent	getNotificationIntent ()
	Returns the intent which is to be started by pushing the notification entry.

Bitmap	getIcon ()

URI	getAlbumArt ()

boolean	getMute ()

void	setMute (boolean mute)

int	getVolume ()

void	setVolume (int volume)

int	getIconResourceId ()

long	getCurrentPosition ()
	returns the current position of the current item in millis

void	seekTo (long millisecondsFromStart)

long	getRemainingTime ()

String	getDuration ()
	returns the duration of the current item

String	getElapsedTime ()
	returns the elapsed time of the current item

void	startTimer (final long duration)
	Start a timer for the next item change.

void	onDestroy ()
	Kill the player.

void	exit ()
	Exit the player.

boolean	hasActionGetVolume ()

boolean	hasActionGetMute ()

Public Member Functions inherited from de.yaacc.player.AbstractPlayer
	AbstractPlayer (UpnpClient upnpClient)

MediaSessionCompat	getMediaSession ()
	Get the MediaSession for this player.

void	onServiceDisconnected (ComponentName className)

Context	getContext ()

void	setIcon (Bitmap icon)

UpnpClient	getUpnpClient ()

void	startService ()

void	next ()
	play the next item

void	onItemEnded ()
	The current item has ended by itself (a timer, or the renderer reported it): go on as the play mode says, which unlike `next()` repeats the item with repeat one.

void	previous ()
	play the previous item

void	pause ()
	Pause the current item.

void	play ()
	start playing the current item

void	stop ()
	stops playing.

PlayMode	getPlayMode ()
	The repeat and shuffle mode of this player.

void	setPlayMode (PlayMode mode)
	Changes the repeat and shuffle mode of this player; the current item goes on playing.

int[]	getPlayOrder ()

boolean	isPlaylistPositionLocked (int position)

boolean	moveInPlayOrder (int fromPosition, int toPosition)
	Moves an item in the playlist as the screen shows it: with shuffle the item moves in the play order (the list is not touched), otherwise in the list.

boolean	removeItem (int itemIndex)
	Removes an item from the playlist (and from the play order).

boolean	removeItem (int itemIndex, boolean alsoPlayed)
	Removes an item.

int	getNextItemIndex ()

int	getPreviousItemIndex ()

void	clear ()
	Drops all Items.

boolean	isPlaying ()

boolean	isPaused ()

boolean	isStopped ()

void	setPlaying (boolean isPlaying)

List< PlayableItem >	getItems ()

void	setItems (PlayableItem... playableItems)
	Set a List of Items.

void	addItems (List< PlayableItem > playableItems)
	adds additional item to the end of the playlist

void	insertItems (int index, List< PlayableItem > playableItems)
	Puts items into the middle of the playlist (the OpenHome renderer's queue): the item that plays keeps playing, the play order places the new items (behind the current one with shuffle), an engine that holds the list too is told.

void	playItemAt (int index)
	Plays the item at the index (a playing, paused or stopped player starts it).

String	getPositionString ()
	returns the current item position in the playlist

int	getCurrentItemIndex ()

String	getCurrentItemTitle ()
	returns the title of the current item

String	getNextItemTitle ()
	returns the title of the next current item

void	setShareLease (QueueShareWindow.Lease lease)
	Makes this player hold the shares of a picked queue just in time: from now on loading an item binds the share of that item and of the next one and releases what the player left behind.

String	getName ()
	Get the player name.

void	setName (String name)
	Set the name of the player.

boolean	isProcessingCommand ()

void	setProcessingCommand (boolean isProcessingCommand)

int	getId ()
	Returns the id of the Player.

void	addPropertyChangeListener (PropertyChangeListener listener)
	add a property change listener

void	removePropertyChangeListener (PropertyChangeListener listener)
	remove a property change listener

String	getShortName ()
	Get the player short name.

void	setShortName (String name)
	Set the short name of the player.

void	fastForward (int i)
	fast forward seconds

void	fastRewind (int i)
	fast rewind seconds

Public Member Functions inherited from de.yaacc.player.Player

Protected Member Functions
void	configureMediaSession (MediaSessionCompat mediaSession)
	Override this to configure MediaSession (e.g., set volume provider for remote playback).

Device<?, ?, ?>	getDevice ()

de.yaacc.upnp.server.http.HttpRequestSender	getHttpRequestSender ()

void	stopItem (PlayableItem playableItem)

Object	loadItem (PlayableItem playableItem)

void	startItem (PlayableItem playableItem, Object loadedItem, int index)

int	getNotificationId ()
	Returns the notification id of the player.

void	doPause ()

void	doResume ()

void	getPositionInfo ()

Protected Member Functions inherited from de.yaacc.player.AbstractPlayer
boolean	isShufflePlay ()
	is shuffle play enabled.

PlayMode	readDefaultPlayMode ()
	The mode a new player starts with: the two settings "replay playlist" and "shuffle music".

void	onPlayModeChanged (PlayMode oldMode, PlayMode newMode)
	The engine of a player applies the new play mode here (the order of the items is already adapted: see `getPlayOrder()`).

void	onItemMoved (int fromIndex, int toIndex)
	The list order changed: the item at `fromIndex` moved to `toIndex` (shuffle is off).

void	onItemRemoved (int index)
	The item at `index` was removed from the list and the play order.

void	onPlayOrderMoved ()
	The play order changed by a move (shuffle is on, the list is unchanged); read it with `getPlayOrder()`.

void	resetPlayOrder (int firstIndex)
	Creates the play order of the playlist again with the given item first (with shuffle a new random order, otherwise the list order).

void	cancelTimer ()

void	setPaused (boolean paused)

final void	adoptExternalPause ()
	Another controller than this app paused the playback (the media notification, the lock screen, a headset or the loss of the audio focus): the engine is paused already, only what the app knows about its player and shows is brought up to date.

final void	adoptExternalResume ()
	The playback that was paused goes on without a command of this app (see `adoptExternalPause()`).

void	setCurrentIndex (int currentIndex)

final synchronized void	adoptDeviceState (List< PlayableItem > deviceItems, int index, boolean nowPlaying, boolean nowPaused)
	For a player whose playlist and playback live on a device (OpenHome): takes over what the device reports.

void	onItemsInserted (int index, List< PlayableItem > inserted)
	Items were put into the list at `index`.

QueueShareWindow.Lease	getShareLease ()
	The lease of the shares of a picked queue, null for every other player.

Object	loadItem (int toLoadIndex)

void	loadItem (int previousIndex, int nextIndex)

void	doPostLoadItem (PlayableItem playableItem)

long	getSilenceDuration ()
	returns the duration between two items

void	updateTimer ()

long	parseTimeStringToMillis (String timeString)

void	showNotificationInternal ()

void	updatePlaybackStateInternal (int state)

void	updateMetadataInternal ()

void	firePropertyChange (String property, Object oldValue, Object newValue)

void	executeCommand (TimerTask command, Date executionTime)

Additional Inherited Members
Public Attributes inherited from de.yaacc.player.Player
String	PROPERTY_PLAY_MODE = "playMode"
	Name of the property change fired (see `addPropertyChangeListener`) when the play mode changed; old and new value are `PlayMode`s.

String	PROPERTY_PLAYLIST = "playlist"
	Name of the property change fired when the playlist changed: items set, added, removed or moved, or the play order created again (a stop, a start).

String	PROPERTY_STOPPED = "stopped"
	Name of the property change fired when the player has stopped: `stop()` is done, whoever called it - the end of the playlist without repeat, the stop button of the app, the media renderer's `Stop`.

Static Public Attributes inherited from de.yaacc.player.AbstractPlayer
static final String	PLAYER_ID = "PlayerId"

static final String	PROPERTY_ITEM = "item"

static final String	PROPERTY_PAUSED = "paused"
	Fired when the player is paused or resumed (the "playing" property is fired when it starts or stops playing).

Package Functions inherited from de.yaacc.player.AbstractPlayer
Static Package Attributes inherited from de.yaacc.player.AbstractPlayer

Detailed Description

A Player for playing on a remote avtransport device.

Author: Tobias Schoene (openbit)

Constructor & Destructor Documentation

◆ AVTransportPlayer() [1/2]

de.yaacc.player.AVTransportPlayer.AVTransportPlayer	(	UpnpClient	upnpClient,
		Device<?, ?, ?>	receiverDevice,
		String	name,
		String	shortName,
		String	contentType )

Parameters

upnpClient	the client
name	playerName

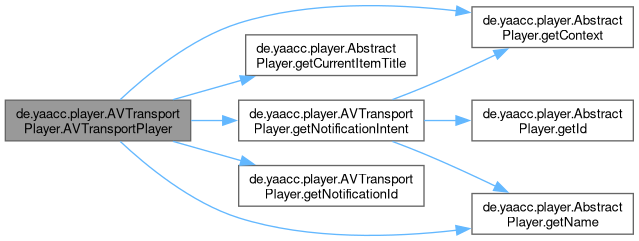

Here is the call graph for this function:

◆ AVTransportPlayer() [2/2]

de.yaacc.player.AVTransportPlayer.AVTransportPlayer ( UpnpClient upnpClient )

Parameters

upnpClient the client

Here is the call graph for this function:

Member Function Documentation

◆ configureMediaSession()

void de.yaacc.player.AVTransportPlayer.configureMediaSession ( MediaSessionCompat mediaSession )

protected

Override this to configure MediaSession (e.g., set volume provider for remote playback).

Reimplemented from de.yaacc.player.AbstractPlayer.

Referenced by de.yaacc.player.AVTransportPlayer.AVTransportPlayer().

Here is the caller graph for this function:

◆ doPause()

void de.yaacc.player.AVTransportPlayer.doPause ( )

protected

Reimplemented from de.yaacc.player.AbstractPlayer.

◆ doResume()

void de.yaacc.player.AVTransportPlayer.doResume ( )

protected

Reimplemented from de.yaacc.player.AbstractPlayer.

◆ exit()

void de.yaacc.player.AVTransportPlayer.exit ( )

Exit the player.

Reimplemented from de.yaacc.player.AbstractPlayer.

Reimplemented in de.yaacc.player.AVTransportController.

◆ getAlbumArt()

URI de.yaacc.player.AVTransportPlayer.getAlbumArt ( )

Reimplemented from de.yaacc.player.AbstractPlayer.

◆ getCurrentPosition()

long de.yaacc.player.AVTransportPlayer.getCurrentPosition ( )

returns the current position of the current item in millis

Returns: the position

Reimplemented from de.yaacc.player.AbstractPlayer.

Referenced by de.yaacc.player.AVTransportPlayerWrapper.getCurrentPosition().

Here is the caller graph for this function:

◆ getDeviceId()

String de.yaacc.player.AVTransportPlayer.getDeviceId ( )

Reimplemented from de.yaacc.player.AbstractPlayer.

◆ getDuration()

String de.yaacc.player.AVTransportPlayer.getDuration ( )

returns the duration of the current item

Returns: the duration

Reimplemented from de.yaacc.player.AbstractPlayer.

Referenced by de.yaacc.player.AVTransportPlayerWrapper.getDuration().

Here is the caller graph for this function:

◆ getElapsedTime()

String de.yaacc.player.AVTransportPlayer.getElapsedTime ( )

returns the elapsed time of the current item

Returns: the elapsed time

Reimplemented from de.yaacc.player.AbstractPlayer.

◆ getHttpRequestSender()

de.yaacc.upnp.server.http.HttpRequestSender de.yaacc.player.AVTransportPlayer.getHttpRequestSender ( )

protected

Returns: the client's HTTP sender, null if there is none right now (no server service or network listener yet). The action callbacks answer a missing sender with their failure path.

Here is the call graph for this function:
